- 3 roller carriage gives a compact design.
- Patent pending compliant rail feature.
- No need to adjust carriage fit up.
- Compliant rail adjusts to system inaccuracies.
- Standardand custom lenghths.

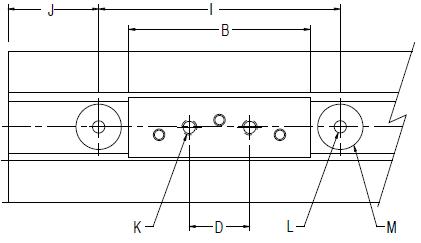

DIMENSIONS(INCHES)
SIZE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
CARRIAGE |
RAIL |
VT-1 |
1.000 |
3.000 |
.250 |
1.000 |
.923 |
2.500 |
.700 |
.223 |
4.000 |
1.500 |
1/4-20 UNC |
13/64 |
.75 x .10 DP |
VTC-1 |
VTR-1 |
VT-2 |
1.400 |
4.250 |
.375 |
1.400 |
1.250 |
3.500 |
1.250 |
.260 |
6.000 |
1.500 |
5/1618 UNC |
9/32 |
1.00 x .20 DP |
VTC-2 |
VTR-2 |
VT-3 |
2.000 |
6.000 |
.500 |
2.000 |
2.088 |
4.500 |
1.750 |
.338 |
8.000 |
1.500 |
3/8-16 UNC |
13/32 |
1.00 x .30 DP |
VTC-3 |
VTR-3 |

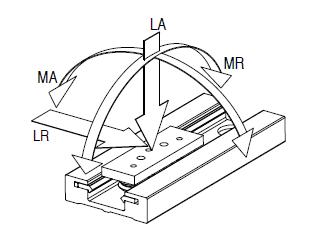

LOADCAPACITY
|
LBS. |
FT-LBS. |
SIZE |
LA |
LR |
MA |
MR |
VT-1 |
171 |
268 |
54 |
194 |
VT-2 |
420 |
644 |
190 |
701 |
VT-3 |
1146 |
1382 |
726 |
2789 |
Working load capacities reflect
lubricated wheel/track interface.
ORDERING
LINEAR GUIDE |
VT-___ |
X____(INCHES) |
CARRIAGE |
VTC-___ |
|
RAIL |
VTR-___ |
X__* |
* STANDARD LENGTHS 12,24,36,48,60 INCHES
MAX LENGHT 120 INCHES
